F-12 is a passive two way portable speaker with φ75mm 170mm magnet 12in LF driver and φ44mm made for use as slow club speaker. Low-frequency flexibility, and strong rhythm, high-frequency crisp is not harsh. Easy to hang. HF horn can be rotated at 90 °, horizontal and vertical hanging also could diffusion angle.

Application

Disco, slow club, entertainment venues.

SPECS.

Rated Power: 350W

Component: LF1*12"(φ75mm, 170 magnet)/ HFφ44mm Voice Coil

Impedance: 8Ω

Dispersion: 80x50°

Sensitivity: 97dB

Max. SPL:126dB

Freq. Response: 65-18.2kHz

Cabinet: 18mm plywood

DIM(W*D*H): 398x365x585mm

MEAS(W*D*H): 470x385x620mm

N.W: 24.5kg

G.W: 26kg

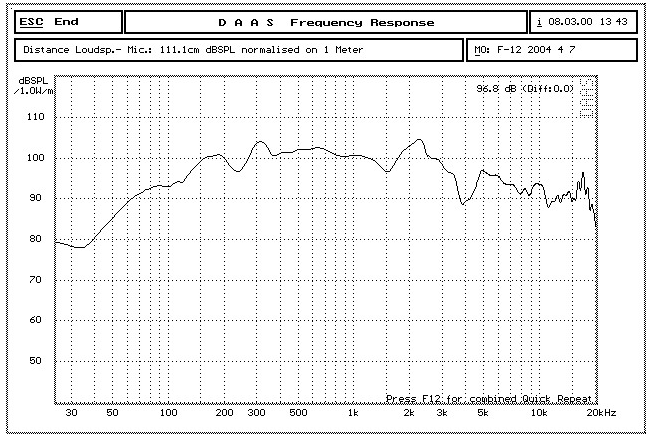

Freq. Response Curve
