Product Details
  • AK-930
Detail

AK-930 is design for Karaoke, has one φ50mm 10in LF driver, two 4in papar cone MF driver, four HF driver. With the features of high sound pressure, high sensitivity.



SPECS

Rated Power: 350W

Component: LF1x10" (φ50mm)/HF4xφ14mm

Impedance: 8Ω

Sensitivity: 97dB

Max. SPL: 121dB

Freq. Response: 50-20kHz

Cabinet: 15mm MDF

DIM(WxDxH): 555.4x310x293mm

MEAS(WxDxH): 640x335x605mm (2pcs)

N.W: 12kg

G.W: 28kg (2pcs)

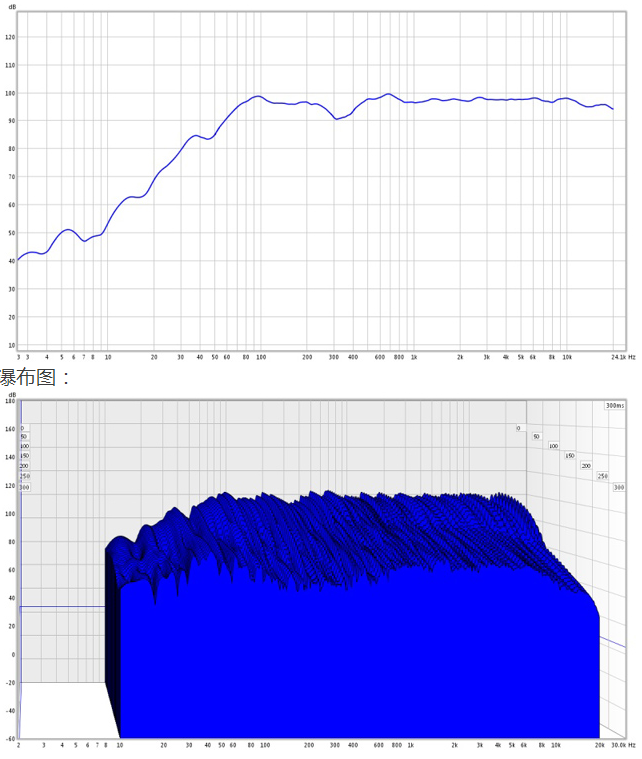

Freq. Response Curve
