XO-12ND is a 2-way 12 inch psaaive professional speaker for touring show, multi-fuction hall. With one φ75mm voice coil neodymium 15 inch LF driver and one φ44mm voice coil neodumium HF driver. HF driver with diecasted Al-alloy horn loaded. Cabinet use 15mm birch plywood. Pentagon shaped structure effectively reduce the resonance. Easy to install, wire connection use die casting aluminum material, reduce the resonant 30 degrees is inserted into the speaker line, to eliminate the bending force by the weight of the cut line, while avoiding the box wall damaged plug.

Application

Recording room, art performance, karaoke and so on.

SPECS

Rated Power: 450W

Component: LF1x12"(φ75mm,neo)/HF1xφ44mm(neo)

Impedance: 8Ω

Dispersion: 60x75°

Sengsitivity: 97dB

Max. SPL: 122dB

Freq. Response: 65Hz-19.5kHz

Cabinet: 15mm plywood

Dim(WxDxH): 373.3x367.5x625mm

Meas(WxDxH): 475x475x710mm

N.W: 25kg

G.W: 29kg

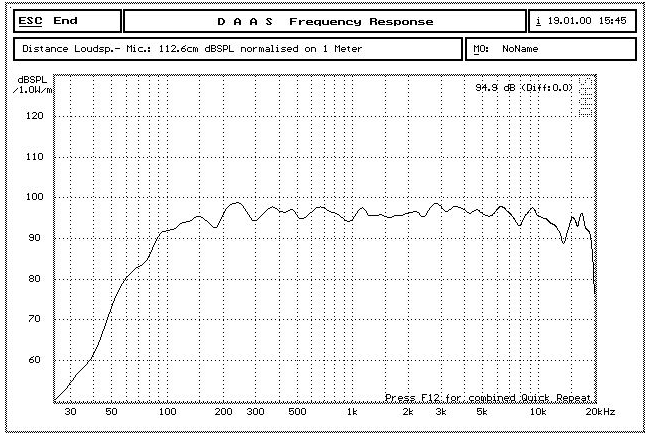

Freq. Response Curve
