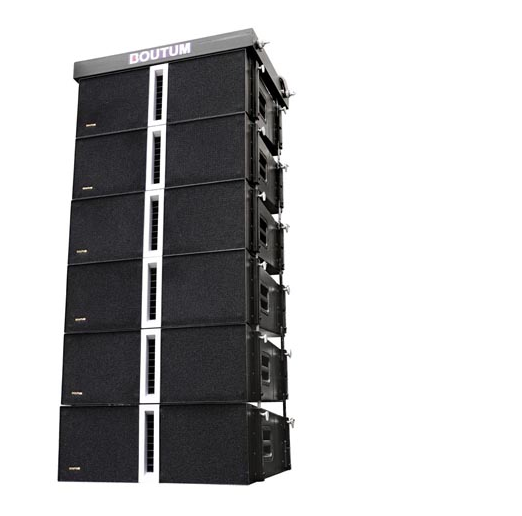

I-7000 is a passive two way line array speaker with 2 pcs 220mm magnet 12in LF drivers and 1 pcs φ75mm coil HF driver. High-efficiency high-frequency waveguide, vertical control angle 0-8 °, horizontal coverage angle ≥ 100 °. Cabinet with a dedicated hanging angle can be used for subtle angle adjustment. Cabinet use 13 layers 18mm imported glued birch plywood, the appearance of environmentally friendly water-based paint with water-resistant system design.

Features

Large dynamic, high fidelity, long range. External aluminum alloy structure of the hanging system, with a special hanging angle.

Application

Applicable to outdoor middle or large-scale performances, indoor large-scale concert.



SPECS

Rated Power: 950W

Component: LF2x12"(φ100mm)/ HF1xφ75mm

Impedance: 4Ω

Dispersion: 100x5°

Sensitivity: 100dB

Max. SPL: 129dB

Freq. Response: 53-18kHz

Cabinet: 18mm Brich plywood

DIM(WxDxH): 924x650x340mm

MEAS(WxDxH):1015x705x390mm

N.W: 66kg

G.W: 72kg

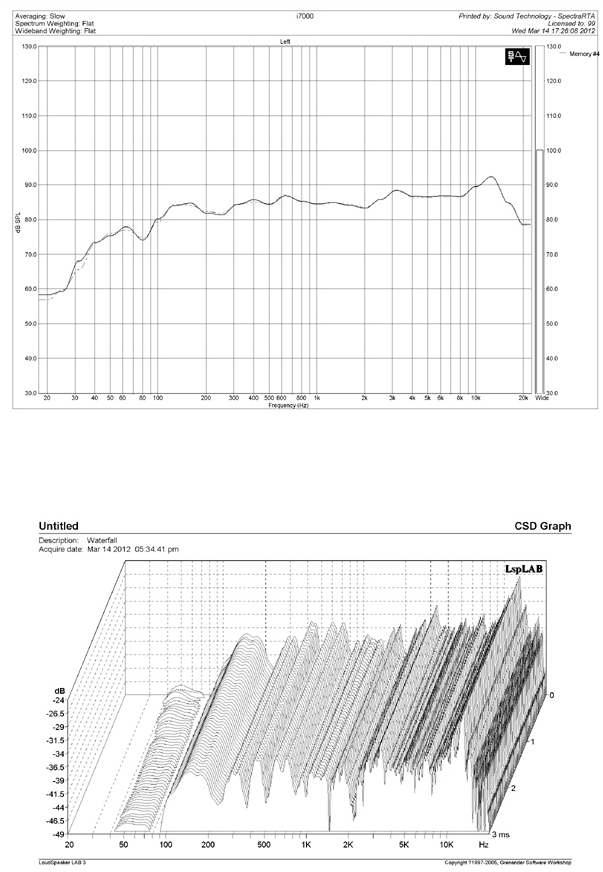

 Freq. Response Curve
